ITEM DIAMETER LENGTH WEIGHT TENSILE WORKING LOAD LIMIT
# INCHES FEET LBS STRENGTH RANGE -LBS
16775 1/4 1,200 22 540 45-108
16778 3/8 600 23 1215 101-243
16782 1/2 600 42 2385 199-477
16784 5/8 600 76 3960 330-742
16785 3/4 600 95 4860 405-972
12350 1 600 154 8100 675-1620
12400 1-1/8 600 206 10,800 900-2160
12445 1-1/4 600 238 12,150 1013-2430
12550 1-1/2 600 342 16,650 1388-3330
12557 1-5/8 600 427 20,250 1688-4050
12562 1-3/4 600 510 23,850 1988-4770
12600 2 600 612 27,900 2325-5580

specifications

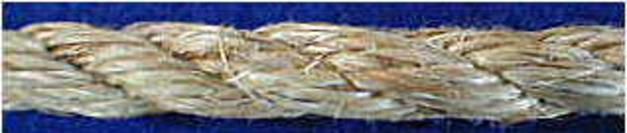

3 Strand Twisted Manila

The best known natural fiber rope. At one time, it was the best rope fiber available. This premium grade biodegradable rope provides good knot holding ability. Its natural texture provides a firm grip even when oiled. Manila has very low stretch compared to synthetic ropes and possesses excellent rendering qualities. With good resistance to internal and external wear, manila provides many uses for industrial, heavy marine, construction, roofing, lasso and lunging ropes. It is also excellent as a general use rope for home and farm, gymnasium climbing ropes and for ornamental purposes. Manila must be handled and stored with care as any dampness may cause it to rot.

* Other sizes available upon request

** Do not exceed Working Load Limits
