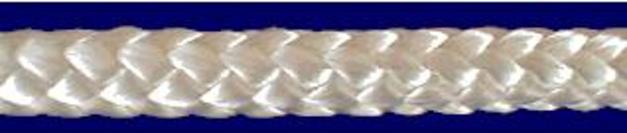

Diamond braid is constructed with strands of fiber braided over and under each other in a circular direction. The middle of the rope has a center core of parallel fibers. This braid is generally stronger than solid braid, but not as strong as twisted or double braid.
* Other lengths available upon request
** Do not exceed Working Load Limits
specifications
| ITEM | DIAMETER | LENGTH | WEIGHT | TENSILE | WORKING LOAD LIMIT |
| # | INCHES | FEET | LBS | STRENGTH | RANGE -LBS |
| 20148 | 3/32 | 1000 | 3 | 300 | 25-60 |
| 20150 | 1/8 | 1000 | 4 | 360 | 30-74 |
| 20202 | 5/32 | 1000 | 5.6 | 570 | 47-114 |
| 20250 | 3/16 | 1000 | 7.7 | 750 | 62-150 |
| 20300 | 7/32 | 1000 | 11 | 1000 | 83-200 |
| 20350 | 1/4 | 1000 | 15 | 1225 | 102-245 |
| 20400 | 5/16 | 1000 | 25 | 1850 | 154-370 |
| 20360 | 3/8 | 1000 | 38 | 2650 | 221-530 |
| 20370 | 1/2 | 1000 | 61 | 4700 | 392-940 |
