specifications

This rope is constructed with strands of polyester fiber braided over and under each other in a circular direction. Polyester is a very strong synthetic with excellent abrasion resistance. Diamond braid polyester does not have the stretch and elasticity of diamond braid nylon.

* Other sizes available upon request

** Do not exceed Working Load Limits

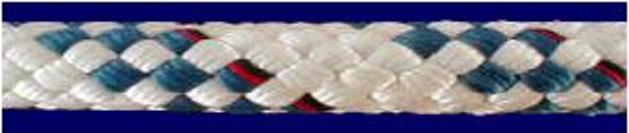

diamond braid polyester

ITEM DIAMETER LENGTH WEIGHT TENSILE WORKING LOAD LIMIT
# INCHES FEET LBS STRENGTH RANGE -LBS
20809 1/8 1000 4.2 385 32-77
20820 5/32 1000 6 555 46-111
20822 3/16 1000 8 720 60-144
20824 7/32 1000 12 855 71-171
20826 1/4 1000 15.4 1000 83-200
20799 5/16 1000 25.7 1440 120-288
20800 3/8 1000 39 2100 175-420
22415 1/2 1000 60 3600 300-720
