specifications
econobraid
| ITEM | DIAMETER | LENGTH | WEIGHT | TENSILE | WORKING LOAD LIMIT |
| # | INCHES | FEET | LBS | STRENGTH | RANGE -LBS |
| 20500 | 1/8 | 1000 | 4 | 220 | 18-44 |
| 20550 | 5/32 | 1000 | 7.49 | 370 | 31-74 |
| 20600 | 3/16 | 1000 | 9.15 | 460 | 38-92 |
| 20650 | 7/32 | 1000 | 14.34 | 590 | 49-118 |
| 20700 | 1/4 | 1000 | 16.67 | 750 | 63-150 |
| 20750 | 5/16 | 1000 | 26.1 | 1140 | 95-227 |

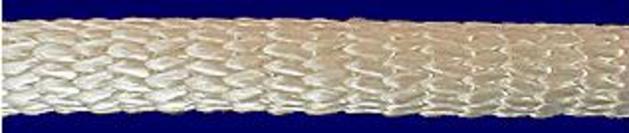

Econobraid polyester has a low stretch polyester jacket with a polyester/ polypropylene blend core. This fiber combination has several main advantages: the polyester lends a high tensile strength, weather resistance, and abrasion resistance to the cord, while the polypropylene adds bulk and ensures its economy. Econobraid is also resistant to mold, rot and mildew. Econobraid polyester is an all-purpose cord with an unlimited amount of commercial applications.
