Diamond braid polypropylene - MFP

ITEM DIAMETER LENGTH WEIGHT TENSILE WORKING LOAD LIMIT
# INCHES FEET LBS STRENGTH RANGE -LBS
20827 1/8 1000 3 168 14-33
20832 5/32 1000 4.7 252 21-51
20835 3/16 1000 6.5 360 30-73
20838 7/32 1000 8.9 492 41-97
20840 1/4 1000 11.7 636 53-126
20845 5/16 1000 18.1 972 81-194
20850 3/8 1000 25.9 1152 96-230

specifications

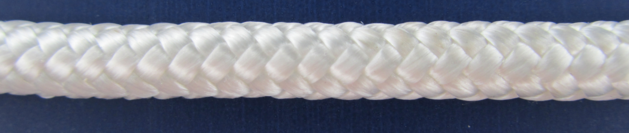

This cord is constructed with 8 strands of multifilament polypropylene braided over and under each other in a circular direction. This construction permits a core (inside) fiber to be used for the purpose of adding strength. Multifilament polypropylene has a somewhat velvety appearance and feel.

* Other sizes available upon request

** Do not exceed Working Load Limits
