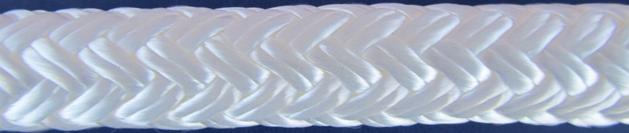

Also known as braid on braid polyester. This rope is actually two braided ropes combined into one rope. A braided core is covered with a braided jacket to produce a strong easy to handle rope. This rope is spliceable and very strong.   Polyester double braid provides an excellent combination of high strength, low stretch, excellent weathering and easy handling. Of all the popular fibers polyester has the best weathering characteristics and the best wet abrasion resistance.

* Other lengths available upon request

** Do not exceed Working Load Limits

ITEM DIAMETER LENGTH WEIGHT TENSILE WORKING LOAD LIMIT
# INCHES FEET LBS STRENGTH RANGE -LBS
22200 1/4 600 12 1550 129-310
22250 5/16 600 19 2380 199-477
22300 3/8 600 27 3420 285-684
22400 1/2 600 48 5940 495-1188
22450 5/8 600 75 9000 750-1800
22500 3/4 600 107 12,800 1069-2565
22600 1 600 191 22,480 1875-4500
22601 1 1/8 600 242 28,440 2371-5690
22602 1 1/4 600 299 35,000 2917-7000
22603 1 1/2 600 430 49,680 4200-10,080
22604 1 5/8 600 504 61,200 4875-11,700
22612 1 3/4 600 586 70,380 5865-14,076
22613 2 600 768 91417 7618-18,283
22614 2 1/4 600 966 132,300 11,025-26,460
22615 2 1/2 600 1194 161,100 13,425-32,220
22616 2 5/8 600 1320 177,300 14,775-35,460
22617 2 3/4 600 1578 210,000 17,550-42,120
22618 3 600 1722 227,700 18,975-45,540

double braid polyester

specifications
